| Einführschlauch | |
|---|---|
| Außendurchmesser | 12,8 mm |
| Arbeitslänge | 1690 mm |
| Gesamtlänge | 2005 mm |
| Arbeitskanal | |
| Innendurchmesser | 2,8 mm und 3,8 mm |
| Abwinkelung | |
| Oben | 180° |
| Unten | 180° |
| Links | 160° |
| Rechts | 160° |
| Optisches System | |
| Blickwinkel | 140° |
| Blickrichtung | 0° Forward viewing |
| Schärfentiefe | 3-100 mm |
| Sonstiges | |
| Kompatibel mit den Prozessoren | EPX-2500, EPX-3500HD, EPX-4400, EPX-4450HD |
| Sonstiges | • two working channels (2.8 mm and 3.8 mm) • Water jet function 12 months warranty |
| Zustand | Used device rebuilt |
Zubehör
Fujinon AW-500/G
Air/Water Valve
Fujinon SB-500
Suction Valve
Fujinon Biopsieventil
Fujinon Biopsy Valve
Weiteres Zubehör erhalten Sie natürlich auf Anfrage!

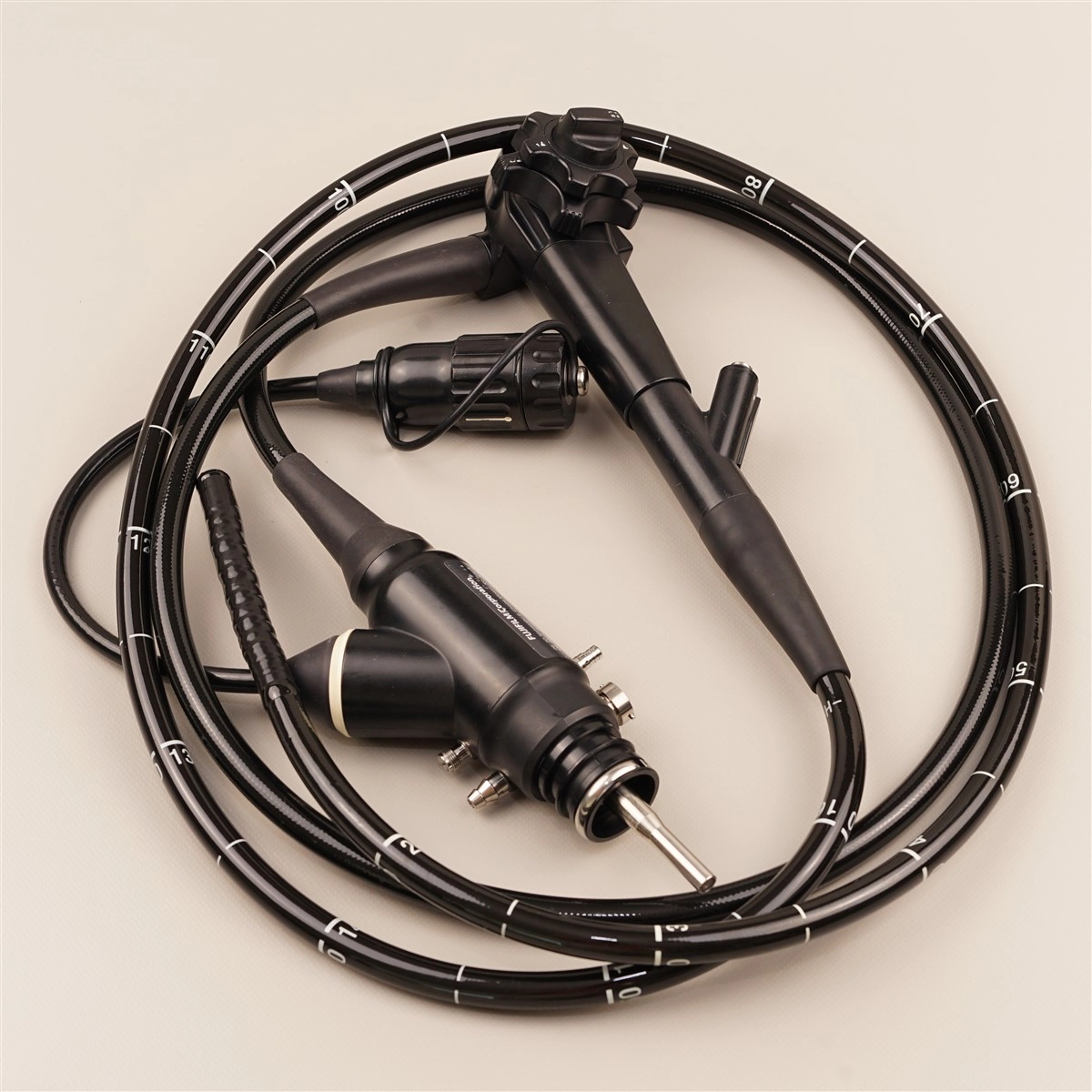

Fujinon EC-530DL
With the Fujinon EC-530DL you get exceptional image quality and a large field of view of 140° during the examination.
Thanks to the two working channels with a diameter of 2.8 mm and 3.8 mm, the Fujinon EC-530DL creates excellent conditions for therapeutic interventions in the lower gastrointestinal tract.
Is your Colonoscope Fujinon EC-530DL defective? Take advantage of our endoscope repair service and maintenance service for flexible medical endoscopes - fast, uncomplicated and cost-effective! For using one of this services or for any questions, simply write a message on our contact form!
Our services include all common device classes such as gastroscopes, coloscopes, bronchoscopes and cystoscopes from the manufacturers Olympus, Pentax and Fujinon.
