| Einführschlauch | |
|---|---|
| Außendurchmesser | 12,8 mm |
| Arbeitslänge | 1330 mm |
| Gesamtlänge | 1655 mm |
| Arbeitskanal | |
| Innendurchmesser | 3,7 mm |
| Abwinkelung | |
| Oben | 180° |
| Unten | 180° |
| Links | 160° |
| Rechts | 160° |
| Optisches System | |
| Blickwinkel | 140° |
| Blickrichtung | 0° Forward viewing |
| Schärfentiefe | 2-100 mm |
| Sonstiges | |
| Kompatibel mit den Prozessoren | Exera III CV-190 |
| Sonstiges | • Close Focus • NBI (Narrow Band Imaging) • Waterproof One-touch Connector 12 months warranty |
| Zustand | Used device rebuilt |
Zubehör
Olympus MH-438
Air/Water Valve
Olympus MH-443
Suction Valve
Olympus Biopsieventil
Olympus Biopsy Valve
Olympus MH-944
Channel Plug
Olympus MH-948
Cleaning Valve for the Air/Water Channel
Weiteres Zubehör erhalten Sie natürlich auf Anfrage!

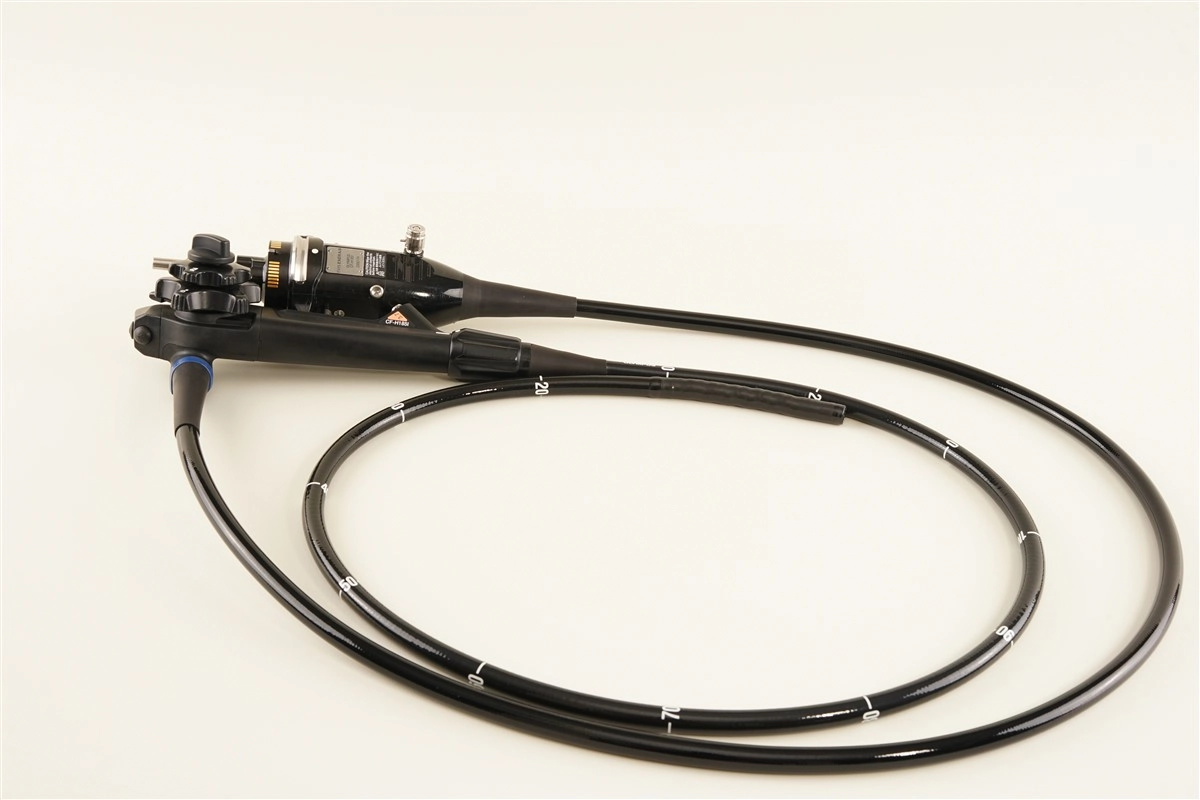

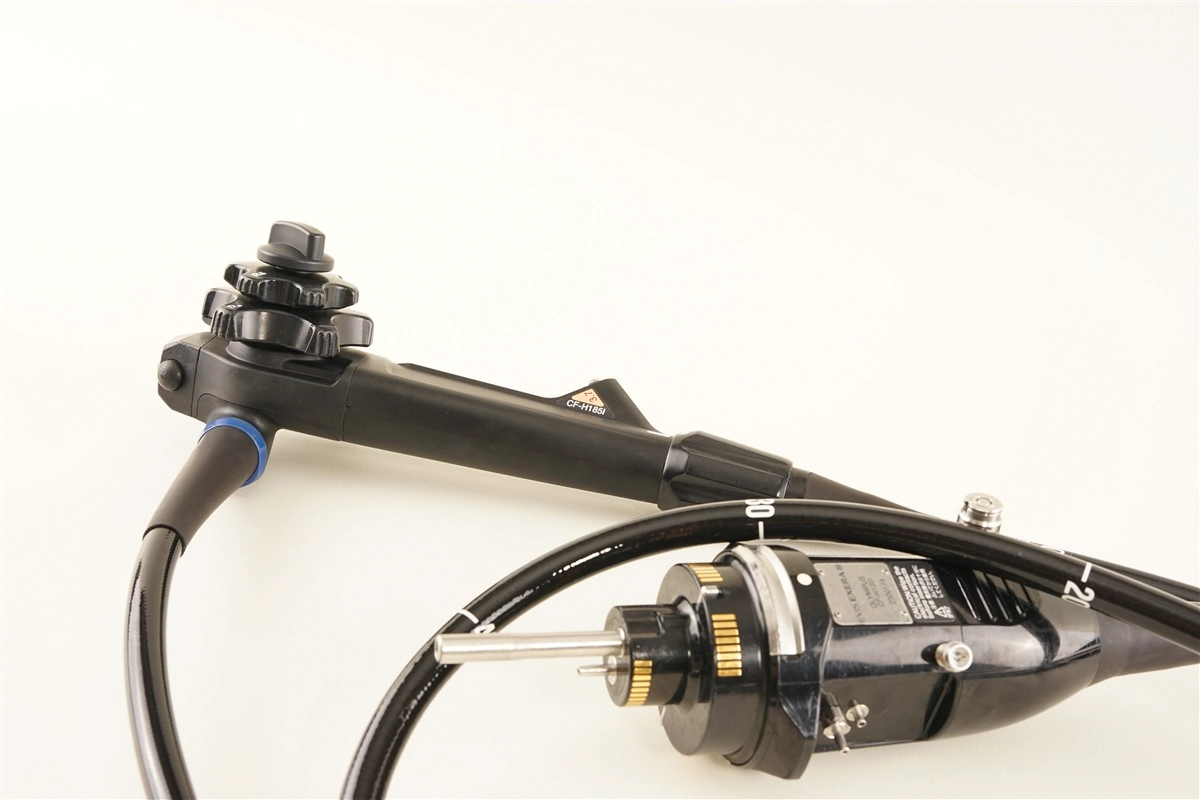

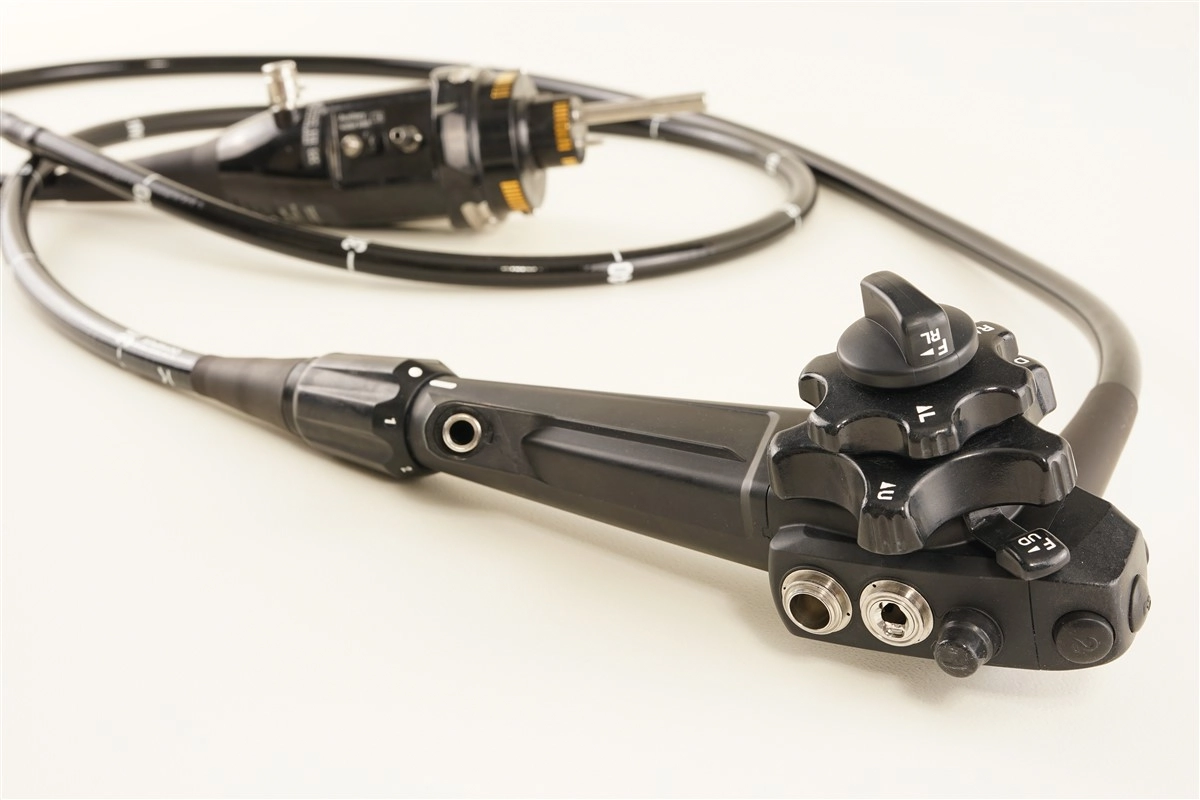

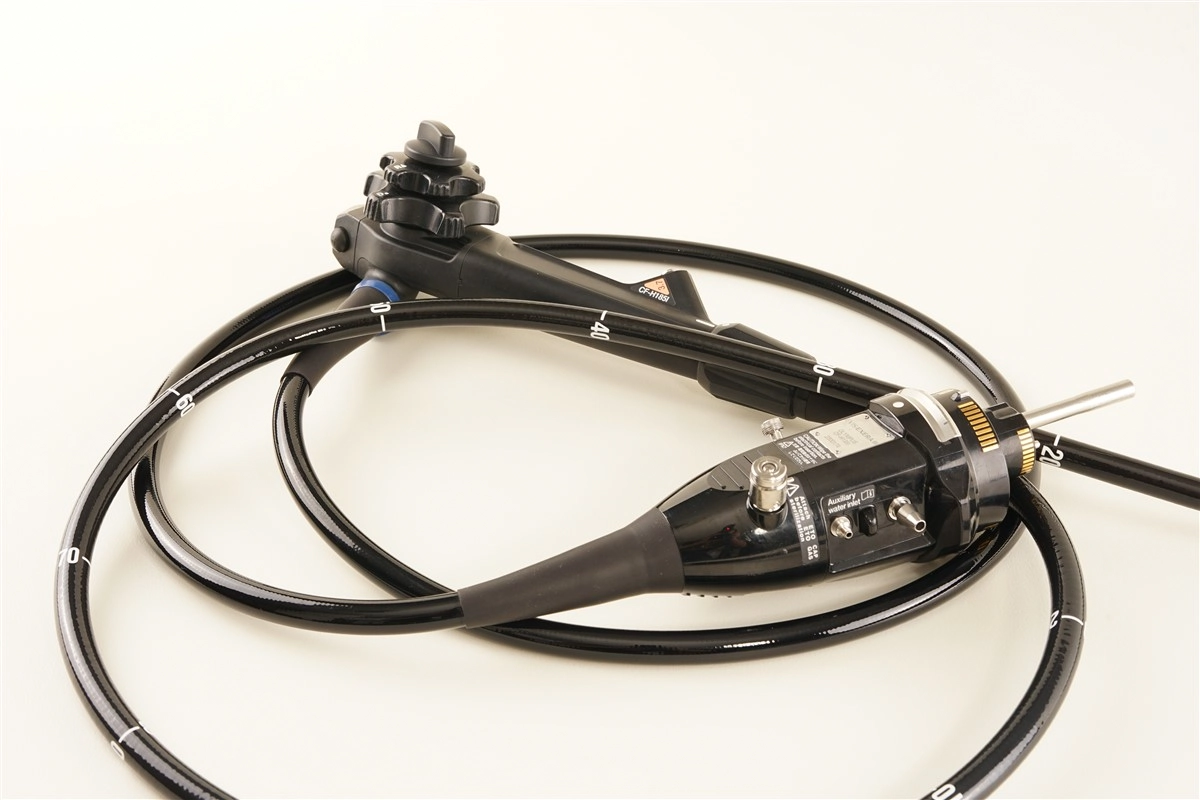

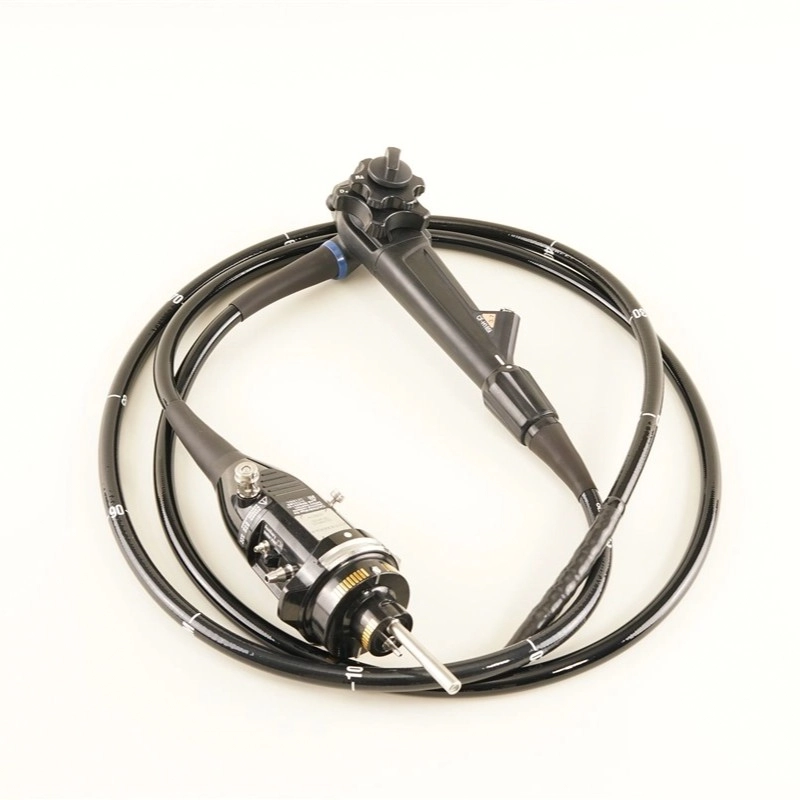

Olympus CF-H185i - First-class colonoscopy images thanks to HDTV
.
The HDTV image sensor in the Olympus CF-H185i gives you a high-resolution detailed image.
You get the finest mucosal details thanks to a very large depth of field of 2-100 mm, which allows precise assessment during examinations.
With the 2 mm close focus, the Olympus CF-H185i offers you the possibility of detailed analysis of the mucosa.
With the brighter NBI (Narrow Band Imaging) mode, mucosal surfaces and blood vessels are displayed in higher contrast, allowing you to enjoy a correspondingly increased range of vision.
The new waterproof One-touch Connector eliminates the need for a water protection cap during cleaning/reprocessing. The risk of water damage is virtually eliminated, saving the user expensive repair costs.
Is your HDTV Colonoscope Olympus CF-H185i defective? Take advantage of our endoscope repair service and maintenance service for flexible medical endoscopes - fast, uncomplicated and cost-effective! For using one of this services or for any questions, simply write a message on our contact form!
Our services include all common device classes such as gastroscopes, coloscopes, bronchoscopes and cystoscopes from the manufacturers Olympus, Pentax and Fujinon.
