| Einführschlauch | |
|---|---|
| Außendurchmesser | 9,8 mm |
| Arbeitslänge | 1030 mm |
| Gesamtlänge | 1345 mm |
| Arbeitskanal | |
| Innendurchmesser | 2,8 mm |
| Abwinkelung | |
| Oben | 210° |
| Unten | 90° |
| Links | 100° |
| Rechts | 100° |
| Optisches System | |
| Blickwinkel | 140° |
| Blickrichtung | 0° Forward viewing |
| Schärfentiefe | 2-100 mm |
| Sonstiges | |
| Kompatibel mit den Prozessoren | Exera II CV-180, Exera III CV-190 |
| Sonstiges | • Close Focus • NBI (Narrow Band Imaging) • programmable switches 12 months warranty |
| Zustand | Used device rebuilt |
Zubehör
Olympus MH-438
Air/Water Valve
Olympus MH-443
Suction Valve
Olympus MH-553
Water Resistant Cap
Olympus Biopsieventil
Olympus Biopsy Valve
Olympus MH-944
Channel Plug
Olympus MH-948
Cleaning Valve for the Air/Water Channel
Weiteres Zubehör erhalten Sie natürlich auf Anfrage!

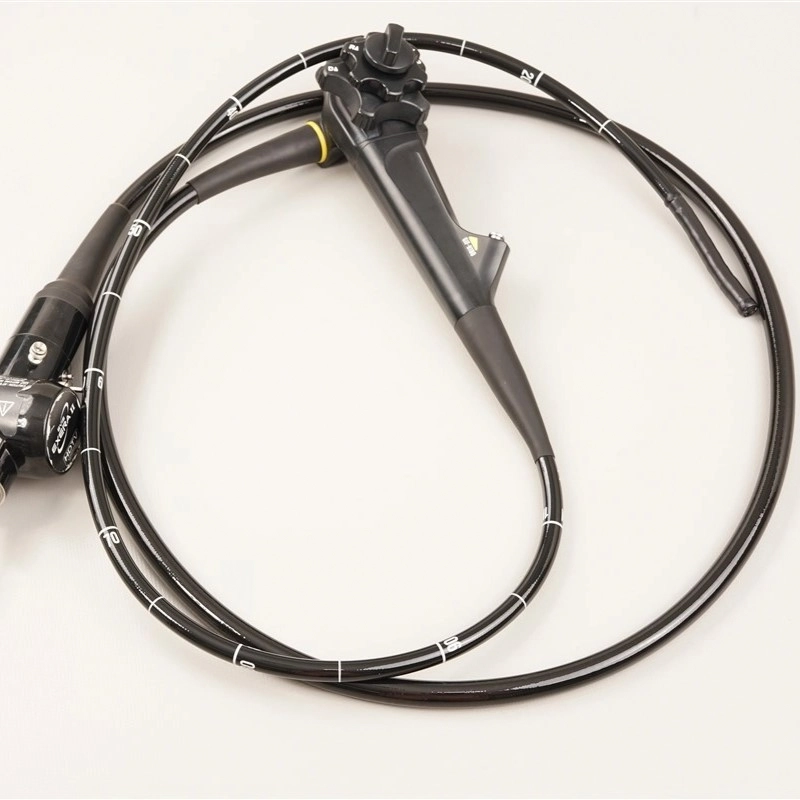

Olympus GIF-H180 - Sharp to the detail with HDTV
.
The Olympus GIF-H180 ensures a high-resolution image display with its HDTV image sensor . You get the finest mucosal details thanks to a very large depth of field of 2-100 mm, which allows precise assessment during examinations.
Close Focus offers you the possibility of improved observation of mucosa and capillaries without electronic magnification of the image by bringing the endoscope tip up to 2 mm closer to the site to be examined. Combined with HDTV, the image focus remains sharp and clear. This allows you to safely examine the patient.
Mucosal surfaces and blood vessels are displayed in higher contrast thanks to the NBI (Narrow Band Imaging) mode, allowing detailed observation during the procedure.
Is your HDTV Gastroscope Olympus GIF-H180 defective? Take advantage of our endoscope repair service and maintenance service for flexible medical endoscopes - fast, uncomplicated and cost-effective! For using one of this services or for any questions, simply write a message on our contact form!
Our services include all common device classes such as gastroscopes, coloscopes, bronchoscopes and cystoscopes from the manufacturers Olympus, Pentax and Fujinon.
