| Einführschlauch | |
|---|---|
| Außendurchmesser | 9,2 mm |
| Arbeitslänge | 1030 mm |
| Gesamtlänge | 1350 mm |
| Arbeitskanal | |
| Innendurchmesser | 2,8 mm |
| Abwinkelung | |
| Oben | 210° |
| Unten | 90° |
| Links | 100° |
| Rechts | 100° |
| Optisches System | |
| Blickwinkel | 140° |
| Blickrichtung | 0° Forward viewing |
| Schärfentiefe | 3-100 mm |
| Sonstiges | |
| Kompatibel mit den Prozessoren | Exera III CV-190 |
| Sonstiges | • Close Focus • NBI (Narrow Band Imaging) • Waterproof One-touch Connector 12 months warranty |
| Zustand | Used device rebuilt |
Zubehör
Olympus MH-438
Air/Water Valve
Olympus MH-443
Suction Valve
Olympus Biopsieventil
Olympus Biopsy Valve
Olympus MH-944
Channel Plug
Olympus MH-948
Cleaning Valve for the Air/Water Channel
Weiteres Zubehör erhalten Sie natürlich auf Anfrage!

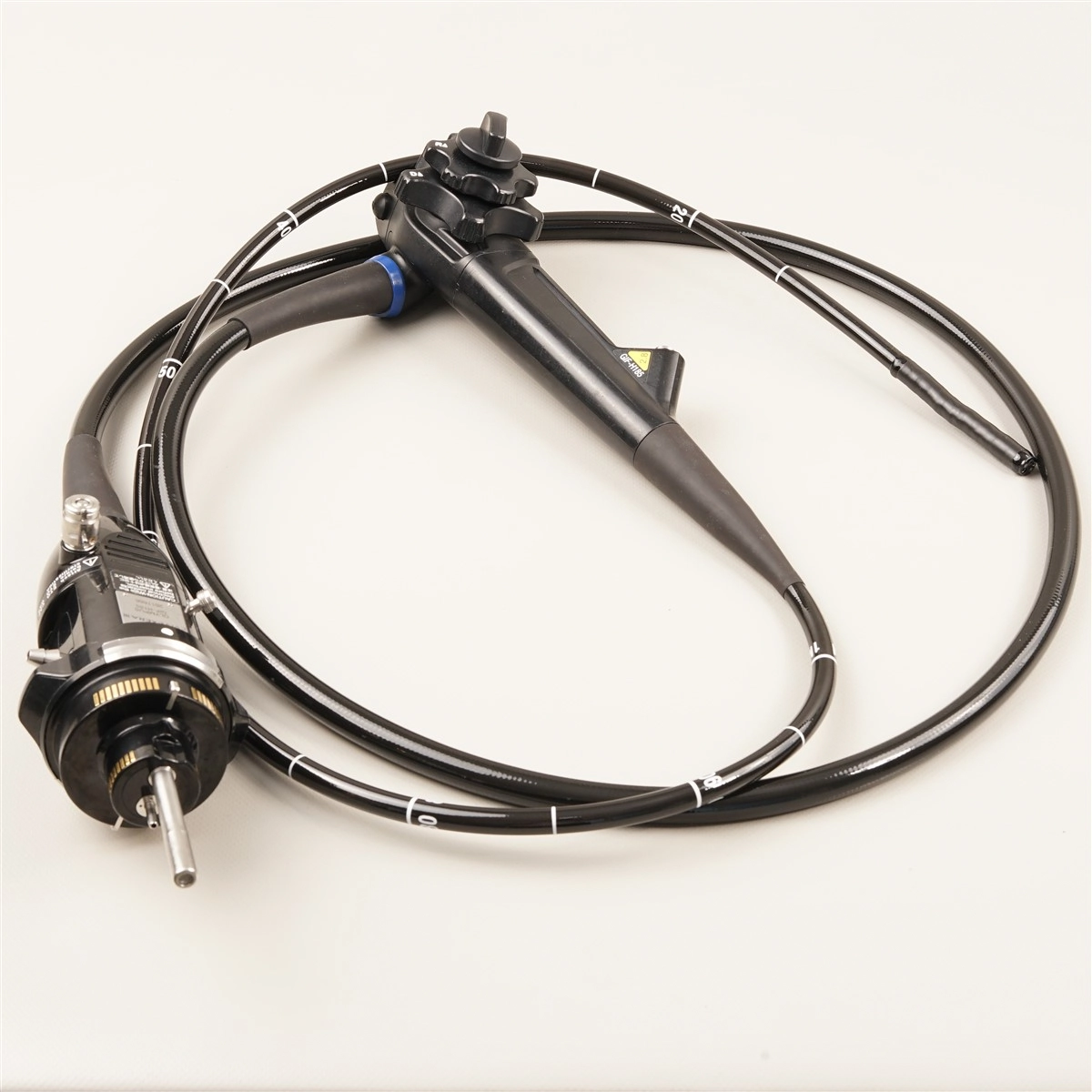

Olympus GIF-H185 - Routine Gastroscope with HDTV
.
With its slim Ø 9.2 mm insertion tube and an HDTV image sensor that provides high-resolution detail, the Olympus GIF-H185 is both powerful and slim. Thanks to the very large depth of field of 2-100 mm, you can obtain the finest mucosal details, which allows precise assessment during examinations.
Mucosal surfaces and blood vessels are displayed in higher contrast thanks to the brighter NBI (Narrow Band Imaging) mode, allowing you to enjoy a correspondingly enlarged field of view.
With the 2 mm close focus, the Olympus GIF-H185 offers you the possibility of detailed analysis of the mucosa.
A water protection cap is no longer required during cleaning/reprocessing due to the new waterproof One-touch Connector. This virtually eliminates the risk of water damage and saves the user expensive repair costs.
Is your HDTV Gastroscope Olympus GIF-H185 defective? Take advantage of our endoscope repair service and maintenance service for flexible medical endoscopes - fast, uncomplicated and cost-effective! For using one of this services or for any questions, simply write a message on our contact form!
Our services include all common device classes such as gastroscopes, coloscopes, bronchoscopes and cystoscopes from the manufacturers Olympus, Pentax and Fujinon.
