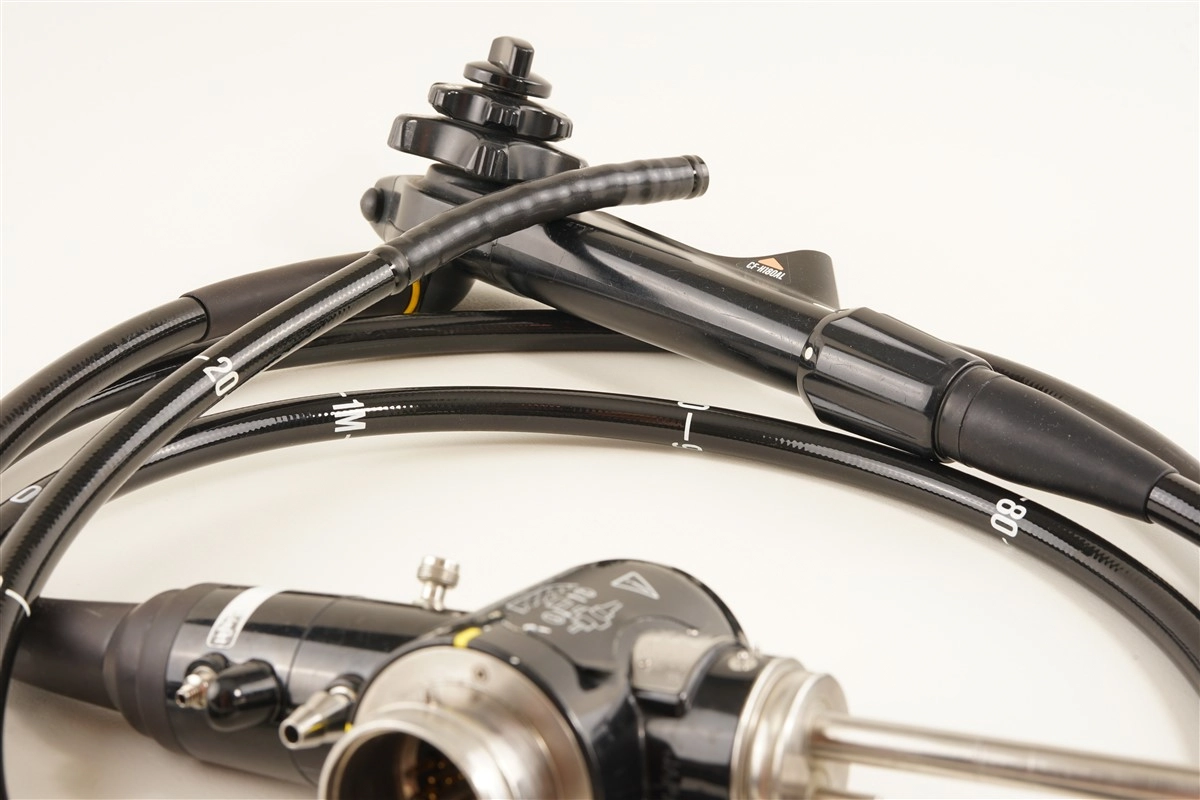

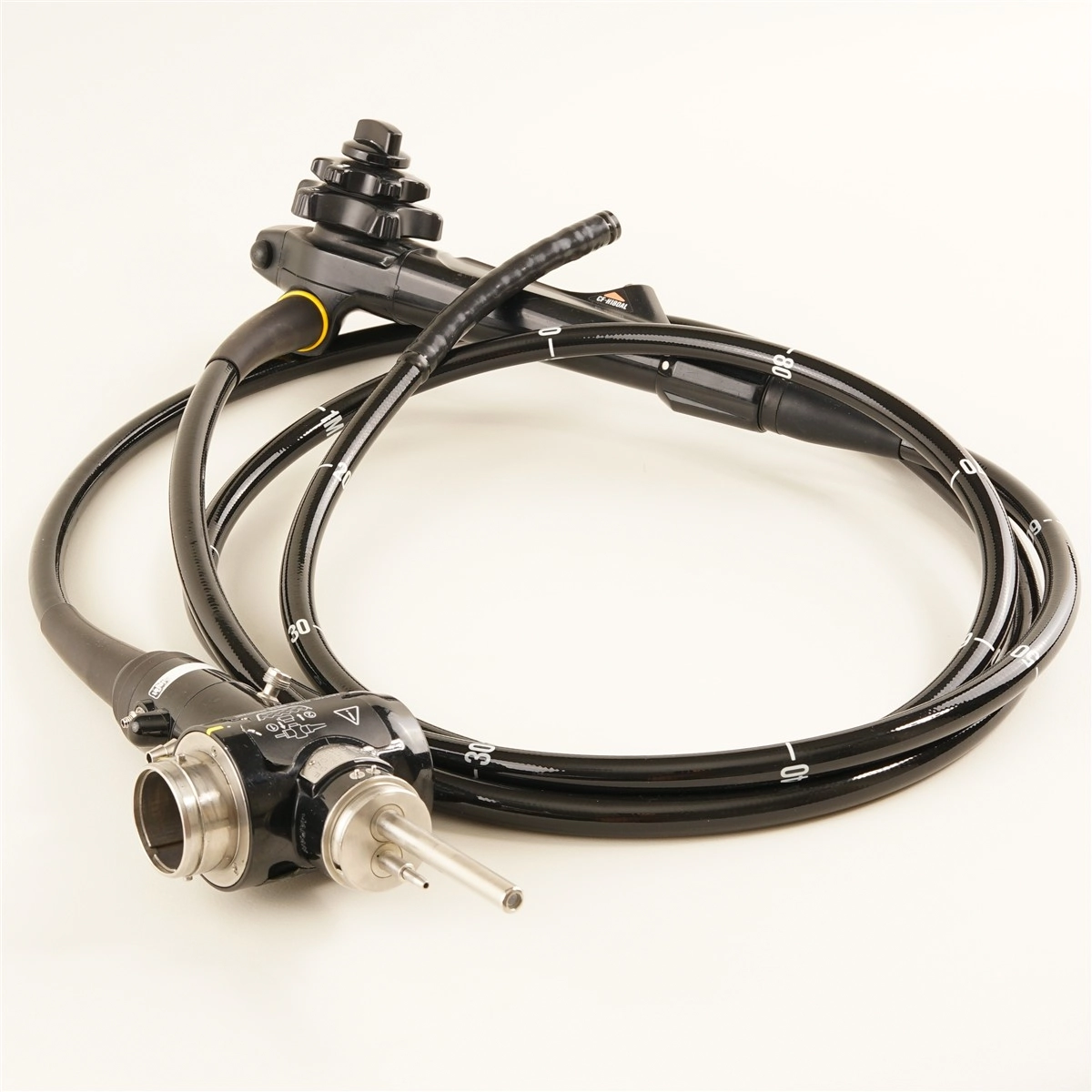

HDTV Colonoscope Olympus CF-H180AL

Olympus CF-H180AL
Olympus CF-H180AL
Olympus CF-H180AL
Olympus CF-H180AL
Insertion tube
Outer diameter 12,8 mm
Working length 1680 mm
Total length 2005 mm
Biopsy channel
Inner diameter 3,7 mm
Up 180°
Down 180°
Left 160°
Right 160°
Optical system
Field of view 170°
Direction of view 0° Forward viewing
Depth of field 2-100 mm
Compatible with this processors Exera II CV-180, Exera III CV-190
Various • Close Focus
• NBI (Narrow Band Imaging)
• Water jet function
• Variable Stiffness Control

12 months warranty
Status Used device rebuilt


Olympus MH-438

Air/Water Valve

Olympus MH-443

Suction Valve

Olympus MH-553

Water Resistant Cap

Olympus Biopsieventil

Olympus Biopsy Valve

Olympus MH-944

Channel Plug

Olympus MH-948

Cleaning Valve for the Air/Water Channel

Weiteres Zubehör erhalten Sie natürlich auf Anfrage!

Olympus CF-H180AL - sharp to the detail with HDTV

The Olympus CF-H180AL ensures a high-resolution image display with its HDTV image sensor. You get the finest mucosal details thanks to a very large depth of field of 2-100 mm, which allows precise assessment during examinations.

Mucosal surfaces and blood vessels are displayed in higher contrast thanks to the NBI (Narrow Band Imaging) mode, allowing detailed observation during the procedure.

Close Focus offers you the possibility of improved observation of mucosa and capillaries by bringing the endoscope tip up to 2 mm closer to the site to be examined, without electronic magnification of the image. Combined with HDTV, the image focus remains sharp and clear. This allows you to safely examine the patient.

Stiffness Control offers you the convenience of flexible adaptation of the insertion tube to the contours and conditions of the colon.

Is your HDTV Colonoscope Olympus CF-H180AL defective? Take advantage of our endoscope repair service and maintenance service for flexible medical endoscopes - fast, uncomplicated and cost-effective! For using one of this services or for any questions, simply write a message on our contact form!

Our services include all common device classes such as gastroscopes, coloscopes, bronchoscopes and cystoscopes from the manufacturers Olympus, Pentax and Fujinon.
