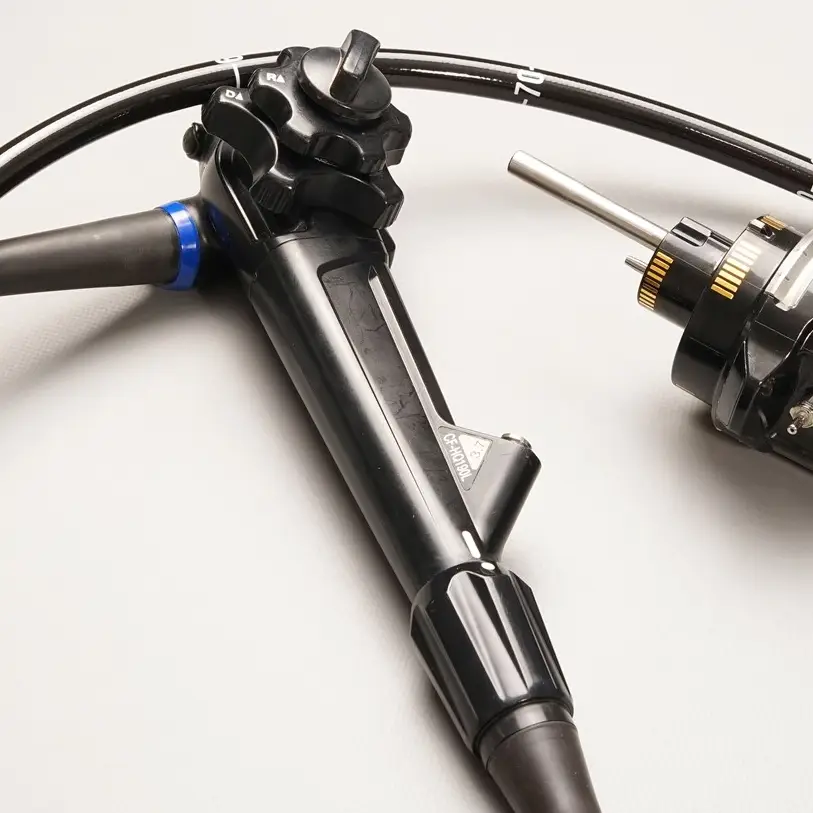

HDTV Colonoscope Olympus CF-HQ190L

Olympus CF-HQ190L
Olympus CF-HQ190L
Olympus CF-HQ190L
Olympus CF-HQ190L
Insertion tube
Outer diameter 12,8 mm
Working length 1680 mm
Total length 2005 mm
Biopsy channel
Inner diameter 3,7 mm
Up 180°
Down 180°
Left 160°
Right 160°
Optical system
Field of view Standard 170º | Near 160º
Direction of view 0° Geradeaus
Depth of field Standard 5-100 mm | Near 2-6 mm
Compatible with this processors Exera III CV-190
Various • NBI (Narrow Band Imaging)
• Dual Focus
• Waterproof One-touch Connector
• Water jet function
• Scope Guide

12 months warranty
Status Used device rebuilt


Olympus MH-438

Air/Water Valve

Olympus MH-443

Suction Valve

Olympus Biopsieventil

Olympus Biopsy Valve

Olympus MH-944

Channel Plug

Olympus MH-948

Cleaning Valve for the Air/Water Channel

Weiteres Zubehör erhalten Sie natürlich auf Anfrage!

Olympus CF-HQ190L - convincing image quality

The new optical system in the Olympus CF-HQ190L ensures better quality in terms of resolution. By reducing the image noise and the overexposure, you get excellent image quality on the monitor and thanks to the pre-freeze function, the sharpest still images are automatically selected.

The integrated Scope Guide technology in the Olympus CF-HQ190L enables real-time 3D representation of the position and shape of the endoscope during colonoscopy.

With the dual focus function, you can simply press a button on the Olympus CF-HQ190L to select either the Near or Standard mode and thus optimize the depth of field when viewing.

Mucosal surfaces and blood vessels are displayed with higher contrast thanks to the brighter NBI (Narrow Band Imaging) mode and you can therefore enjoy a correspondingly enlarged range of vision.

With the new waterproof one-touch connector, a water protection cap is no longer required for cleaning / reprocessing. This almost eliminates the risk of water damage and saves the user expensive repair costs.

Is your HDTV Colonoscope Olympus CF-HQ190L defective? Take advantage of our endoscope repair service and maintenance service for flexible medical endoscopes - fast, uncomplicated and cost-effective! For using one of this services or for any questions, simply write a message on our contact form!

Our services include all common device classes such as gastroscopes, coloscopes, bronchoscopes and cystoscopes from the manufacturers Olympus, Pentax and Fujinon.
