HDTV Gastroscope Olympus GIF-HQ190

Olympus GIF-HQ190
Olympus GIF-HQ190
Olympus GIF-HQ190
Olympus GIF-HQ190
Olympus GIF-HQ190
Insertion tube
Outer diameter 9,9 mm
Working length 1030 mm
Total length 1350 mm
Biopsy channel
Inner diameter 2,8 mm
Up 210°
Down 90°
Left 100°
Right 100°
Optical system
Field of view Standard 140º | Near 140º
Direction of view 0° Forward viewing
Depth of field Standard 5-100 mm | Near 2-6 mm
Compatible with this processors Exera III CV-190
Various • NBI (Narrow Band Imaging)
• Dual Focus
• Waterproof One-touch Connector
• Water jet function

12 months warranty
Status Used device rebuilt


Olympus MH-438

Air/Water Valve

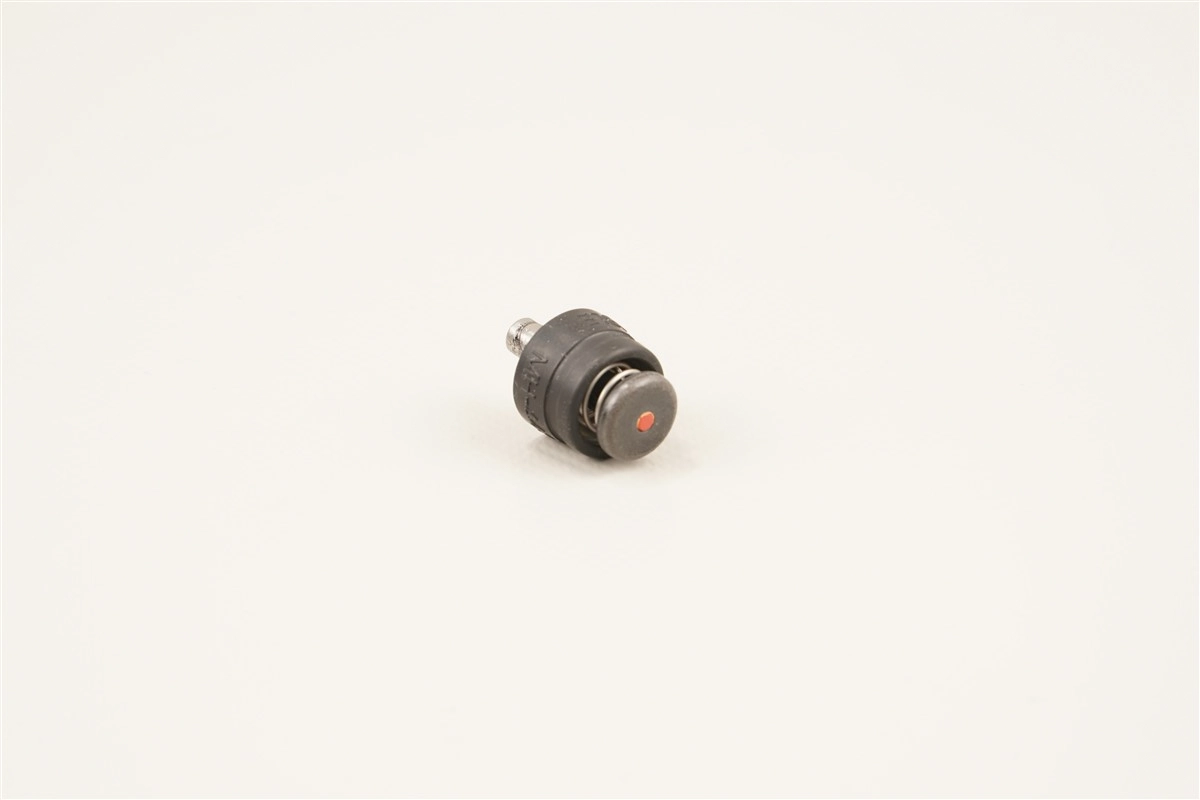

Olympus MH-443

Suction Valve

Olympus Biopsieventil

Olympus Biopsy Valve

Olympus MH-944

Channel Plug

Olympus MH-948

Cleaning Valve for the Air/Water Channel

Weiteres Zubehör erhalten Sie natürlich auf Anfrage!

Olympus GIF-HQ190 - convincing image quality

The new optical system in the Olympus GIF-HQ190 ensures better quality in terms of resolution. By reducing the image noise and the overexposure, you get excellent image quality on the monitor and thanks to the pre-freeze function, the sharpest still images are automatically selected.

With the dual focus function, you can simply press a button on the Olympus GIF-HQ190 to select either the Near or Standard mode and thus optimize the depth of field when viewing.

Mucosal surfaces and blood vessels are displayed with higher contrast thanks to the brighter NBI (Narrow Band Imaging) mode and you can therefore enjoy a correspondingly enlarged range of vision.

Enjoy better treatments and procedures thanks to the additional flushing channel, which is standard on all routine gastroscopes of the EVIS EXERA III 190 series.

With the new waterproof one-touch connector, a water protection cap is no longer required for cleaning / reprocessing. This almost eliminates the risk of water damage and saves the user expensive repair costs.

Is your HDTV Gastroscope Olympus GIF-HQ190 defective? Take advantage of our endoscope repair service and maintenance service for flexible medical endoscopes - fast, uncomplicated and cost-effective! For using one of this services or for any questions, simply write a message on our contact form!

Our services include all common device classes such as gastroscopes, coloscopes, bronchoscopes and cystoscopes from the manufacturers Olympus, Pentax and Fujinon.
